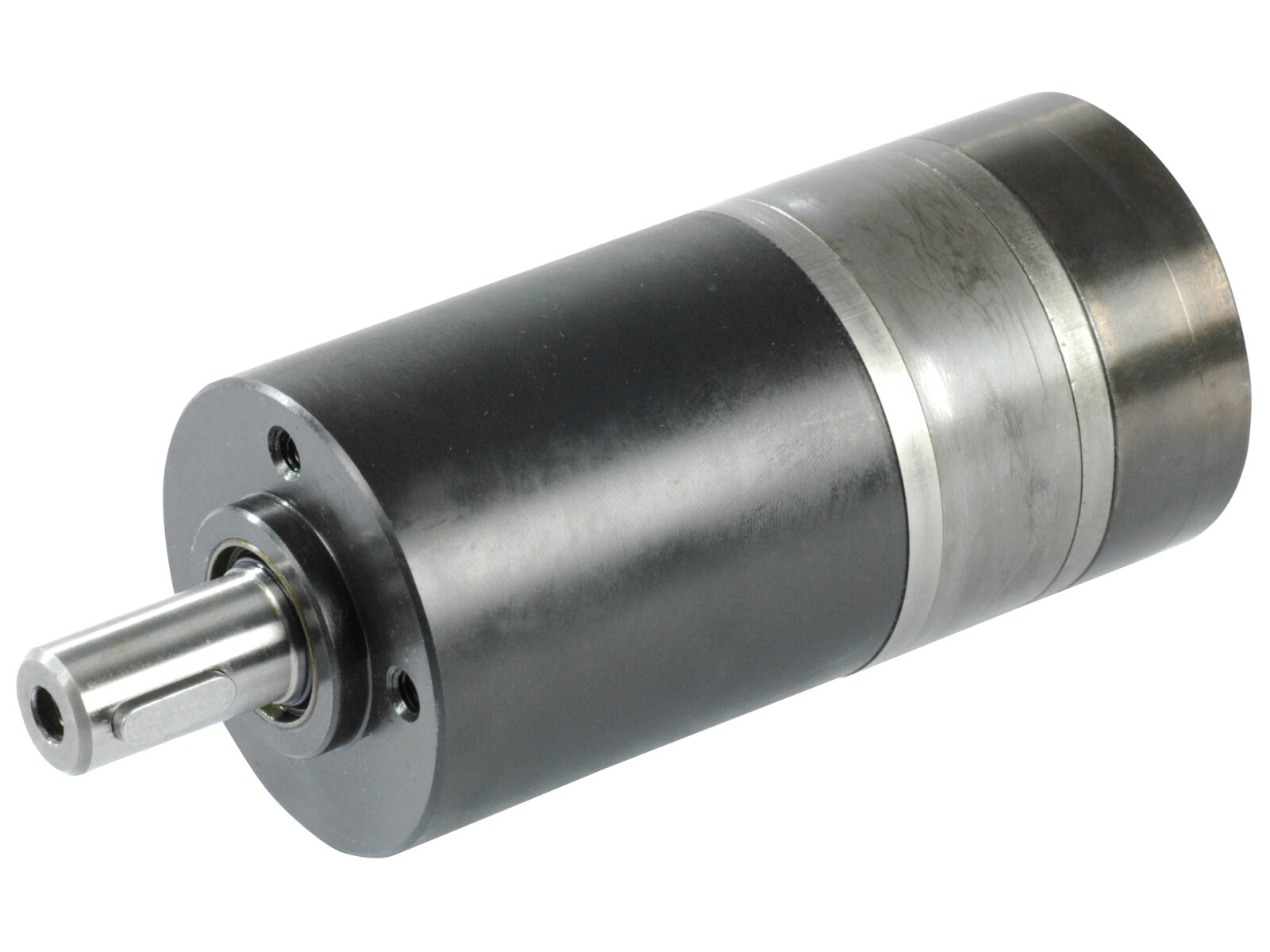

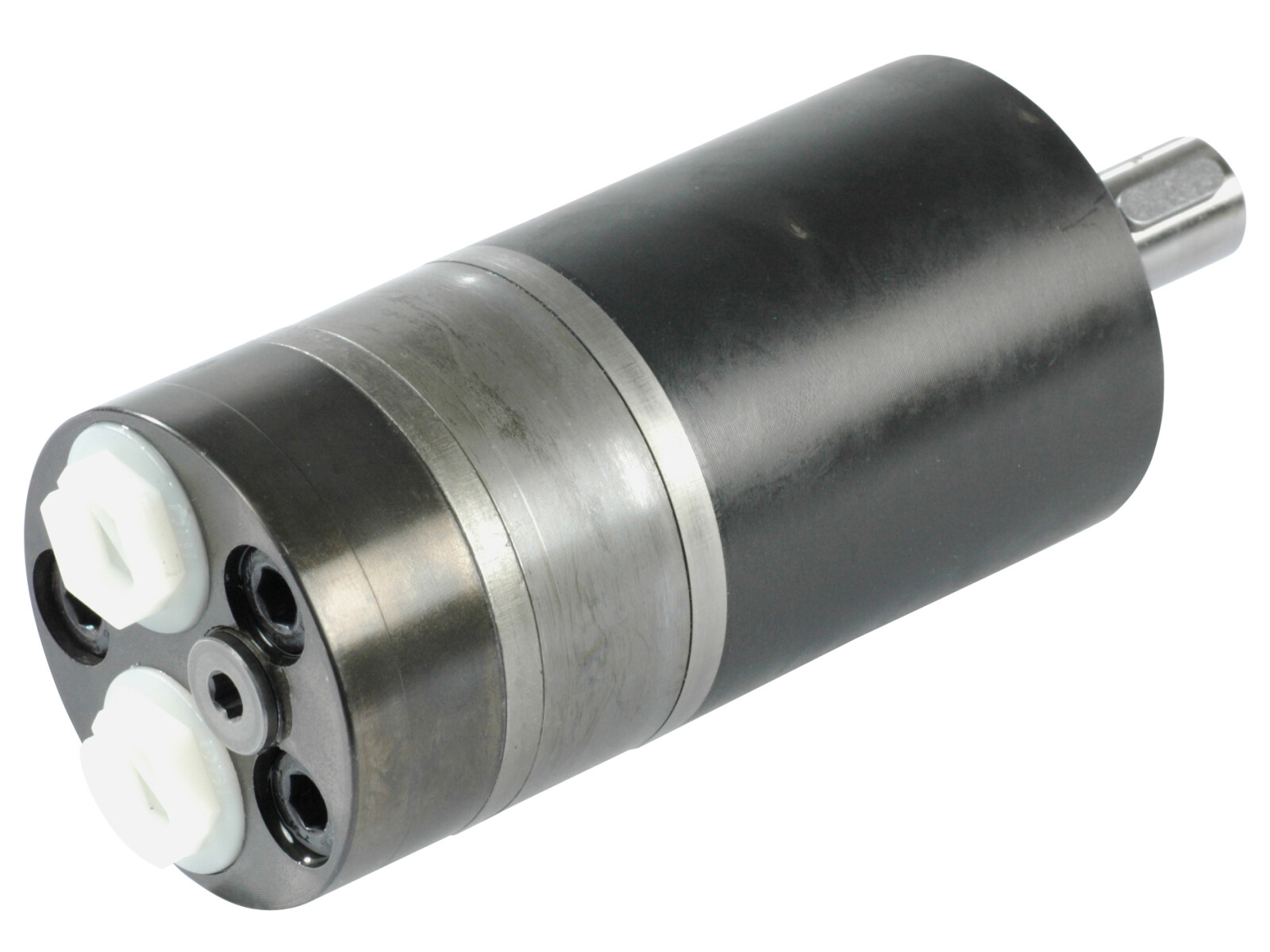

OMM 8 Orbital Motor, 16mm Key Shaft 3/8″ Bsp End Ports

OMM and OML are ideal for use in industrial applications as well as the mobile sector, eg. mobile conveyors for agricultural machinery.

Add to Wishlist
Add to Wishlist
Add to quote
SKU: 151G0040 Category: Brand:

Description

Brand Name White
Continuous power max. 1.8 kW
Continuous rotation max. 1950 rpm
Dimension L 104 mm
Dimension L1 3.5 mm
Displacement 8.2 cm3
Drainport G 1/8 BSP
Holes circle 45 mm
Mounting flange OMM 45
Number of mounting holes 3
Oil viscocity recommended 20 – 75 cSt
Port position Rear
Pressure drop continuous max. 100 bar
Recess 31,5 mm
Sealing material NBR

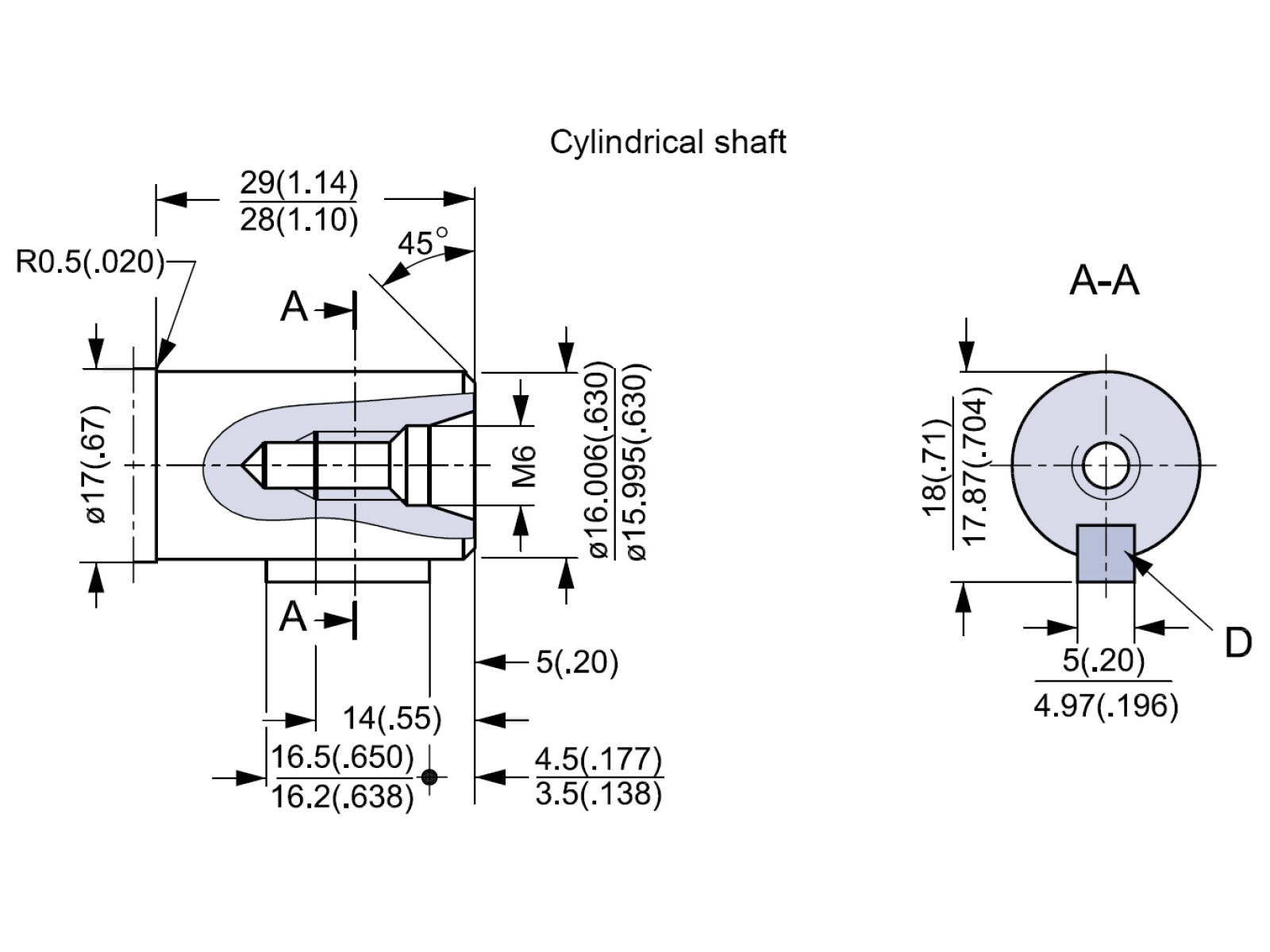

Shaft diameter 16 mm
Shaft keyway 5,0 mm
Shaft type Cylindrical
Torque continuous max. 11 Nm
Working ports G 3/8 BSP

Additional information

Flow Rate (CC Per Rev)

8
Series

OMM
Shaft Size

16mm Key Shaft
