| Bore | 2" |
|---|---|
| Stroke | 30" |
| Cylinder Type | Welded |
| Shaft Size | 1-1/8" |
|---|---|
| Port Size | 3/8" BSP |
| Weight | 13.2 kg |

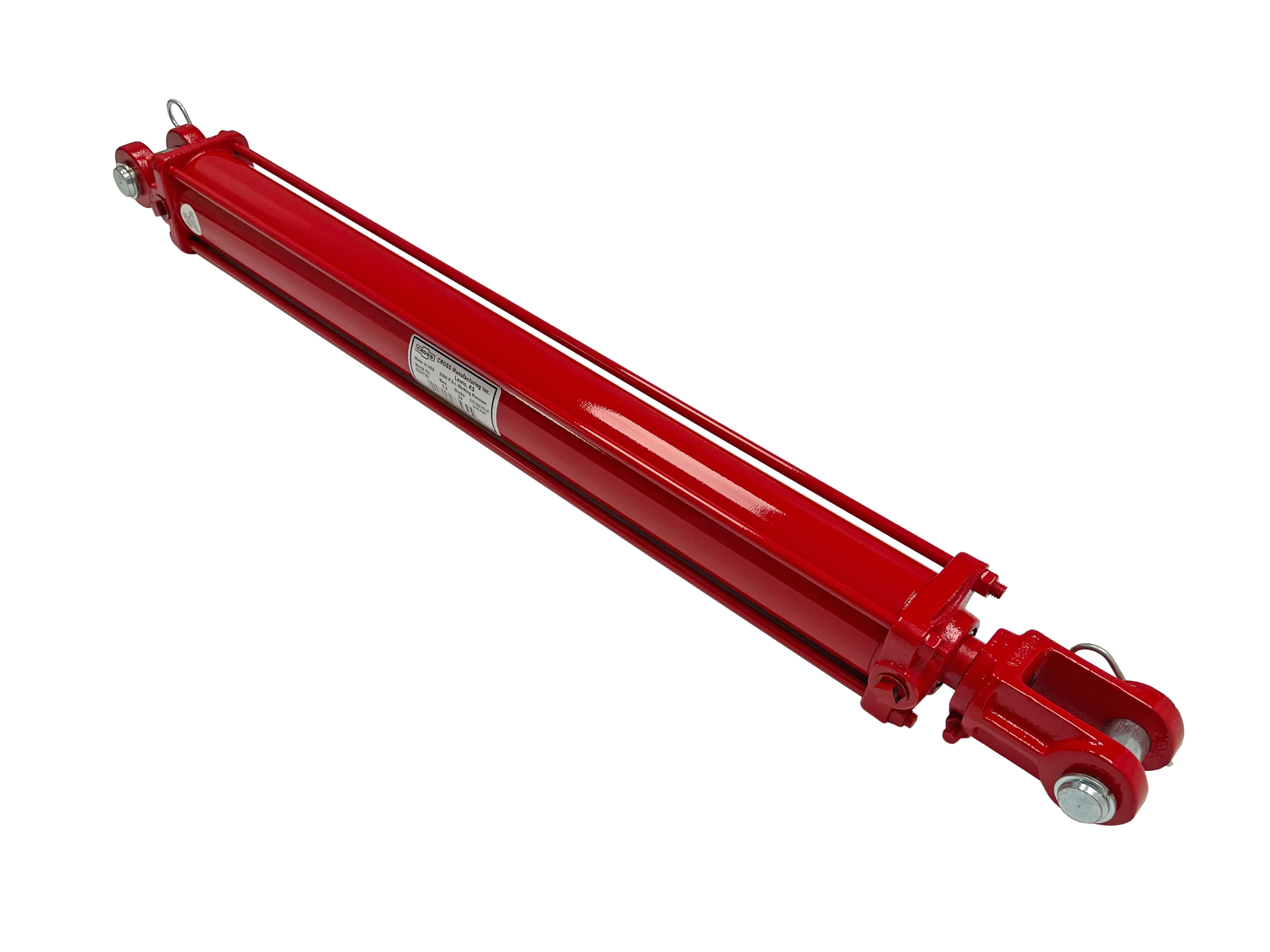

MIC Welded type hydraulic cylinder.
- Bore: 2″ (50.8 mm)
- Stroke: 30″ (762 mm)
- Rod/Shaft diameter: 1-1/8″ (28.7 mm O/D)
- Port size: 3/8″ BSP
- Clevis pin diameter: 1″
- Barrel length: 852 mm
- Closed centre: 1022 mm
- Open centre: 1784 mm
- Force — rod side: 3.4 tons, piston side: 5 tons (at 250 bar)
- Swept volume — rod side: 1.05 L, piston side: 1.54 L
- Weight: 13.2 kg (+/-)
No downloads have been recorded for this product yet. Ask an engineer and we will confirm them for you.
